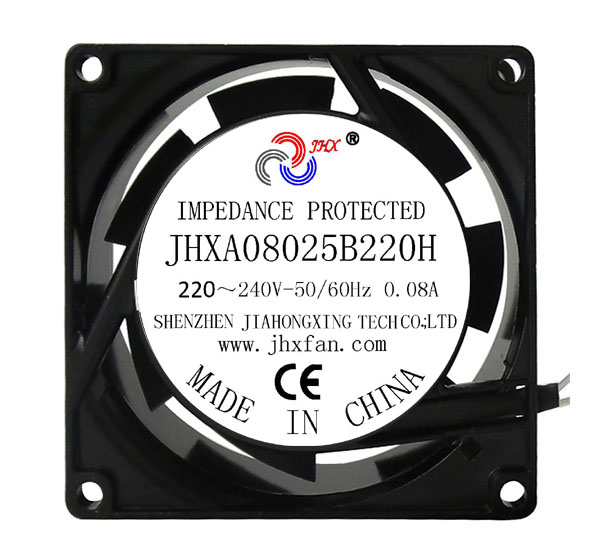

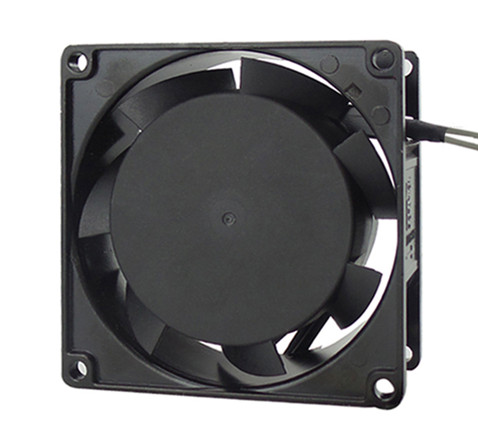

交流風扇 JHX8025
8025 尺寸/Size 80X80X25mm AC Axial Flow Fan

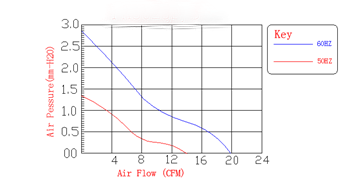

★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規格） |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Freq 頻率（Hz) |
Current
電流（A) |
Input Power 功率（W) |
Speed 轉速 （RPM) |
Air Flow 風量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Noise Level 噪音（dB-A） |
|
JHX8025X1H |
Sleeve/Ball |
110 |
50/60 |
0.13/0.11 |
17.0/15.0 |
2600/3000 |
21/24 |
4.0/5.5 |
28.2/33 |
|
JHX8025X1M |
Sleeve/Ball |
110 |
50/60 |
0.11/0.10 |
13.0/10.0 |
2300/2600 |
18/21 |
2.9/3.4 |
28.2/33 |
|
JHX8025X2H |
Sleeve/Ball |
220 |
50/60 |
0.09/0.08 |
17.0/15.0 |
2600/3000 |
21/24 |
4.0/5.5 |
28.2/33 |
|
JHX8025X2M |
Sleeve/Ball |
220 |
50/60 |
0.06/0.05 |
13.0/10.0 |
2300/2600 |
18/21 |
2.9/3.4 |
28.2/33 |
