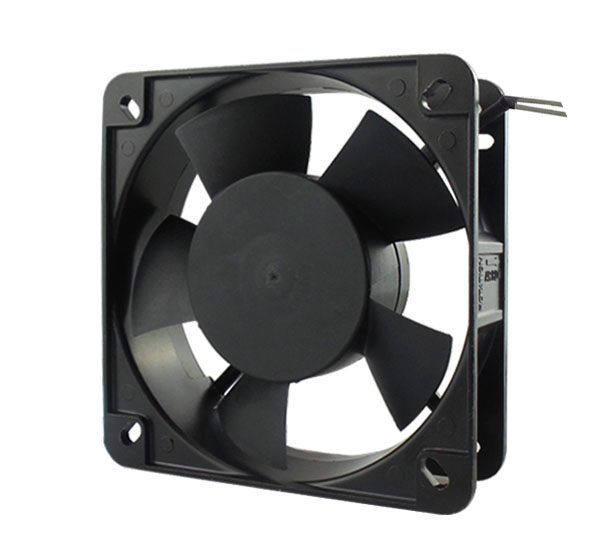

交流風(fēng)扇 JHX13538
13538 尺寸/Size 135X135X38mm AC Axial Flow Fan

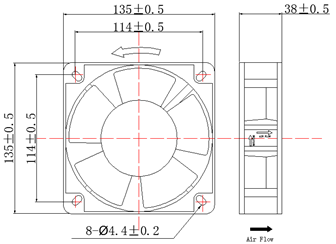

★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規(guī)格） |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Freq 頻率（Hz) |
Current
電流（A) |
Input Power 功率（W) |
Speed 轉(zhuǎn)速 （RPM) |
Air Flow 風(fēng)量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Noise Level 噪音（dB-A） |
|
JHX13538X1H |
Sleeve/Ball |
110 |
50/60 |
0.24/0.20 |
23.0/21.0 |
2600/3000 |
115/141 |
6.50/6.80 |
43/45 |
|
JHX13538X1M |
Sleeve/Ball |
110 |
50/60 |
0.15/0.13 |
15.0/14.0 |
2400/2700 |
107/120 |
4.30/5.10 |
41/43 |
|
JHX13538X1L |
Sleeve/Ball |
110 |
50/60 |
0.13/0.11 |
10.0/9.0 |
2100/2400 |
93/107 |
1.80/3.0 |
39/41 |
|
JHX13538X2H |
Sleeve/Ball |
220 |
50/60 |
0.15/0.13 |
23.0/21.0 |
2600/3000 |
115/141 |
6.50/6.80 |
43/45 |
|
JHX13538X2M |
Sleeve/Ball |
220 |
50/60 |
0.11/0.09 |
15.0/14.0 |
2400/2700 |
107/120 |
4.30/5.10 |
41/43 |
|
JHX13538X2L |
Sleeve/Ball |
220 |
50/60 |
0.07/0.06 |
10.0/9.0 |
2100/2400 |
93/107 |
1.80/3.0 |
39/41 |
|
JHX13538X3H |
Sleeve/Ball |
380 |
50/60 |
0.07/0.06 |
23.0/21.0 |
2600/3000 |
115/141 |
6.50/6.80 |
43/45 |
