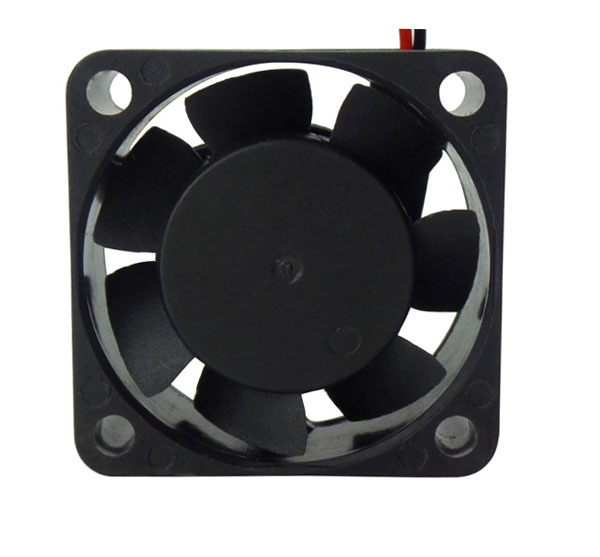

直流風扇 JHX4015
4015 尺寸/Size 40X40X15mm DC AxialFlowFan
★Dimensions Drawing(外觀圖） ★Characteristic Curves(特性曲線)
|
★Specifications（規格 |
|||||||||
|
Model
型號 |
Bearing System 培林 |
Rated Voltage 電壓（V) |
Operation Voltage 電壓范圍 |
Current
電流（A) |
Iuput Power 功率（W) |
Speed 轉速 （RPM) |
AirFlow 風量 （CFM） |
Static Pressure 靜壓（mm-H2O) |
Niose Level 噪音（dB-A） |
|
JHX4015X05M |
Sleeve Ball |
5 |
4.5～5.5 |
0.21 |
1.05 |
6000 |
8.13 |
5.12 |
25.3 |
|
JHX4015X05L |
0.12 |
0.60 |
4000 |
5.80 |
3.35 |
18.9 |
|||
|
JHX4015X12H |
Sleeve Ball |
12 |
10.8～13.2 |
0.14 |
1.68 |
8000 |
11.36 |
9.02 |
32.6 |
|
JHX4015X12M |
0.10 |
1.20 |
6000 |
8.13 |
5.12 |
25.3 |
|||
|
JHX4015X12L |
0.05 |
0.60 |
4000 |
5.80 |
3.35 |
18.9 |
|||
|
JHX4015X24H |
Sleeve Ball |
24 |
18.0～26.5 |
0.10 |
2.40 |
8000 |
11.36 |
9.02 |
32.6 |
|
JHX4015X24M |
0.08 |
1.92 |
6000 |
8.13 |
5.12 |
25.3 |
|||
|
JHX4015X24L |
0.04 |
0.96 |
4000 |
5.80 |
3.35 |
18.9 |
|||
